PRODUCT NAME :
stainless steel
STANDARD:
GB/T1220-2007 GB/T1221-2007 GB/T20878-2007 ASTM A959-04 ISO4955:2005 ISO683-13 ISO683-16 EN10088:1-1995 EN10095-1999
GRADE COMPARISION:
|
GB |
ASTM |
JIS |
|
06Cr17Ni12Mo2N |
316N |
SUS316N |
ULTRASONIC STANDARD:
GB/T6402-2008 / SEP921-84. ASTM A388
CHEMICAL COMPOSITION:
|
C |
Si |
Mn |
P≤ |
S≤ |
Cr |
Mo |
Ni |
N |
|
0.08 |
1.00 |
2.00 |
0.045 |
0.030 |
16.00/18.00 |
2.00/3.00 |
10.00/13.00 |
0.10/0.16 |
HEAT TREATMENT SPECIFICATION & MECHANICAL PROPERTIES:
Yeiled strength σ0.2 (MPa)：≥275
Elongation δ5 (%)：≥35
Reduction of area ψ (%)：≥50
Hardness ：≤217HB；≤95HRB；≤220HV
Solid solution 1010～1150℃
DELIVERY CONDITION :
DIMENSION : mm
|

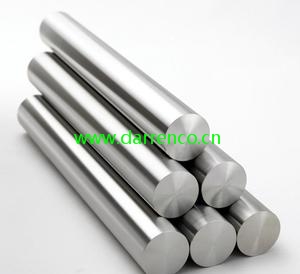

ROUND STEEL BAR |
COIL ROD |
WIRE |
SQUARE/ FLAT |
|
FORGED BAR |
ROLLED BAR |
HOT ROLLED |
COLD DRAW |
FORGED |
ROLLED |
|
100-350 |
16-250 |
∮5.5-20 |
∮0.2-13 |
120-800×120-800 |
5-38×44-150 10-90×60-305 |
APPLIED RANGE:
Add N in 316L,increasing strength but not reduce plasticity , make the thickness thinner . The steel have good stain resistance ,
good thermostability and good mechanical performance . Used for make equipments used in seawater, chemistry, papermaking,
dying , oxalic acid , fertilizer etc equipments.
REMARK：
Above listed parameters and sepcification only for reference . Specific parameters according to standard. Requirments beyond
standard will be negotiate by both sides .
Delivery state:annealed, spheroidal annealed, quenched & tempered ,bright bar, cold-drawn, etc.
Listed specifications are only typical grades; products of required specifications can be developed/produced per international,
Chinese or industry standards, or based
on agreements with customers.
