PRODUCT NAME :
alloy structure steel
STANDARD:
GB/T3077-1999 EN10083-1 EN10083-3 ISO 683-1
GRADE COMPARISION:
|
GB |
ГОСТ |
BS |
DIN |
|
35SiMn |
35CГ |
En46 |
37MnSi5 |
ULTRASONIC STANDARD:
GB/T6402-2008 / SEP921-84. ASTM A388
CHEMICAL COMPOSITION:
|
C |
Si |
Mn |
P≤ |
S≤ |
|
0.32/0.40 |
1.10/1.40 |
1.10/1.40 |
0.035 |
0.035 |
HEAT TREATMENT SPECIFICATION & MECHANICAL PROPERTIES:
Quenching temperature （℃）：900
Tensile strength σb (MPa)：≥885(90)
Yeild strength σs (MPa)：≥735(75)
elongation δ5 (%)：≥15
Reduction area ψ (%)：≥45
Impact Akv (J)：≥47
Hardness ：≤229
DELIVERY CONDITION :
normalized ,annealed, black surface ,rough machined or quenched & tempered , should be indicated in contract .
DIMENSION : mm
|
ROUND STEEL BAR |
COIL ROD |
WIRE |
SQUARE/ FLAT |
|

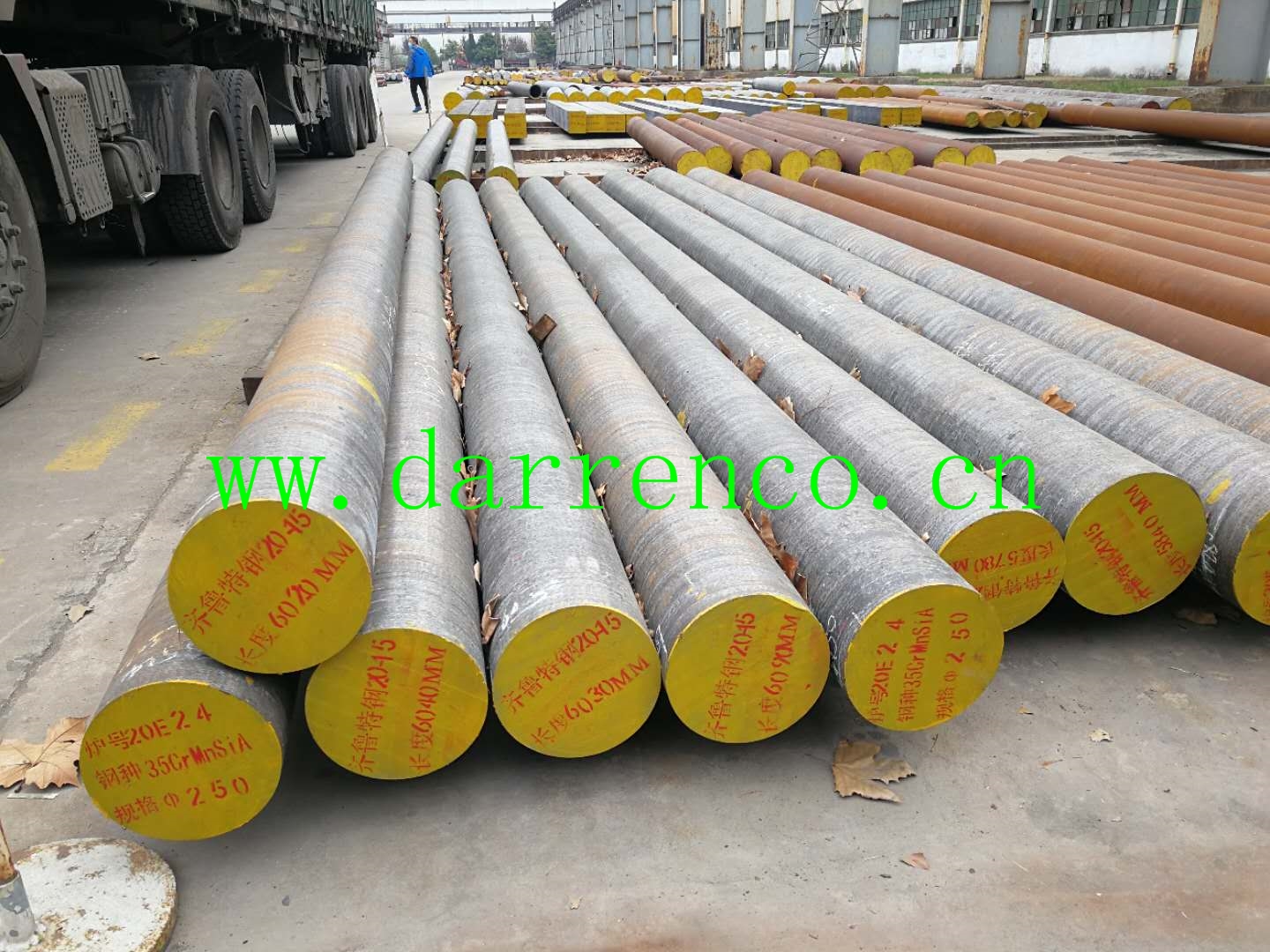

FORGED BAR |
ROLLED BAR |
HOT ROLLED |
COLD DRAW |
FORGED |
ROLLED |
|
80-650 |
16-250 |
∮5.5-20 |
∮0.2-13 |
120-800×120-800 |
5-38×44-150 10-90×60-305 |
length : forged bar free length 4-5.8M,rolled bar 5.8M. for customers special requirment, the bar length can do 20 meters long.
APPLIED RANGE:
Used for transmission gear ,principal axis , mandrel , spindle ,connecting rod ,bent axle ,flywheel, big and small forgings.
REMARK：
Above listed parameters and sepcification only for reference . Specific parameters according to standard. Requirments beyond
standard will be negotiated by both sides.
Delivery state:annealed, spheroidal annealed, quenched & tempered ,bright bar, cold-drawn, etc.
Listed specifications are only typical grades; products of required specifications can be developed/produced as per international,
Chinese or industry standards,or based on agreements with customers.
