Type: Drilling Tool
Certification: API
Material: alloy steel Processing
Use: Well Drilling
Main Description:

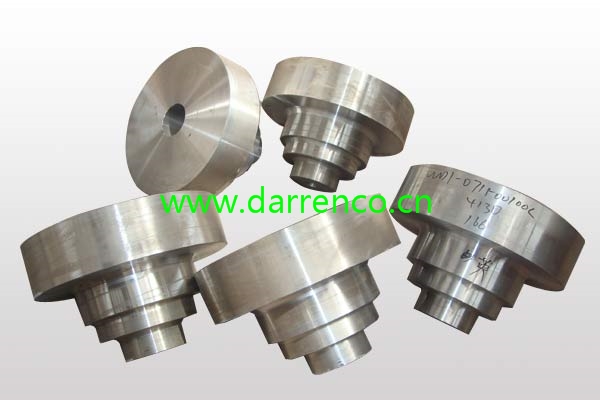

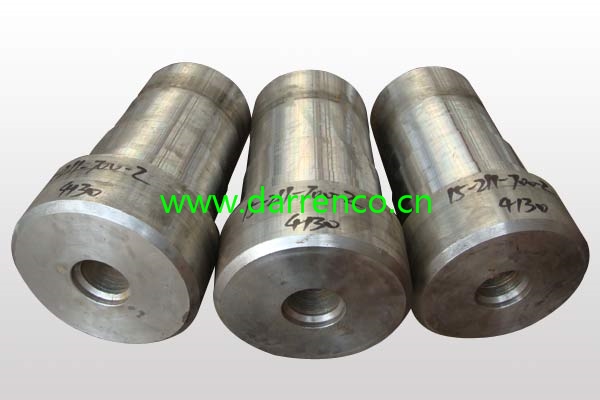

We could supply all models of tubing head,carry out API 6A standard.
Our products could match the following brand :
FMC , CAMERON , CONTROL FLOW , DKG , DRILLQUIP , CE , VECTOGREY , WEATHERFORD , WEIRSEABOARD WOOD GROUP , WOM , STREAM FLO . EXPRO, MI SWACO , T3
The connectionsize and pressure is following :
|
Casing Program |
20 " X13 3/8 " X9 5/8 " X 7 " or 5 1/2 " |
|
Flanged Outlet |
PFF35/80:R35 |
|
PFF70/65:BX153 |
|
Load Capacity |
≤ 5000KN |
|
Hanger Specification |
4 ", 4 1/2 ", 5 ", 5 1/2 ", 7 " |
|
Working Pressure |
35Mpa~70Mpa |
|
Performance Requirement Grade |
PR1 |
|
Product Specification Grade |
PSL1-3 |
|
Temperature |
P·U (-29°C~121°C) |
|
Material Class |
AA~FF |
|
Top flange |
Top flange |
Top flange |
Top flange |
11"×2000psi
(279.4mm×14MPa) |
11"×2000psi
(279.4mm×14MPa) |
11"×5000psi
(279.4mm×35MPa) |
13-5/8"×5000psi
(346.1mm×35MPa) |
11"×2000psi
(279.4mm×14MPa) |
13-5/8"×2000psi
(346.1mm×14MPa) |
11"×10000psi
(279.4mm×70MPa) |
13-5/8"×5000psi
(346.1mm×35MPa) |
11"×3000psi
(279.4mm×21MPa) |
11"×3000psi
(279.4mm×21MPa) |
11"×15000psi
(279.4mm×105MPa) |
13-5/8"×5000psi
(346.1mm×35MPa) |
11"×3000psi
(279.4mm×21MPa) |
13-5/8"×2000psi
(346.1mm×14MPa) |
13-5/8"×5000psi
(346.1mm×35MPa) |
21-1/14"×2000psi
(539.8mm×14MPa) |
11"×3000psi
(279.4mm×21MPa) |
13-5/8"×3000psi
(346.1mm×21MPa) |
13-5/8"×10000psi
(346.1mm×70MPa) |
13-5/8"×5000psi
(346.1mm×35MPa) |
11"×5000psi
(279.4mm×35MPa) |
13-5/8"×3000psi
(346.1mm×21MPa) |
13-5/8"×15000psi
(346.1mm×105MPa) |
13-5/8"×5000psi
(346.1mm×35MPa) |
